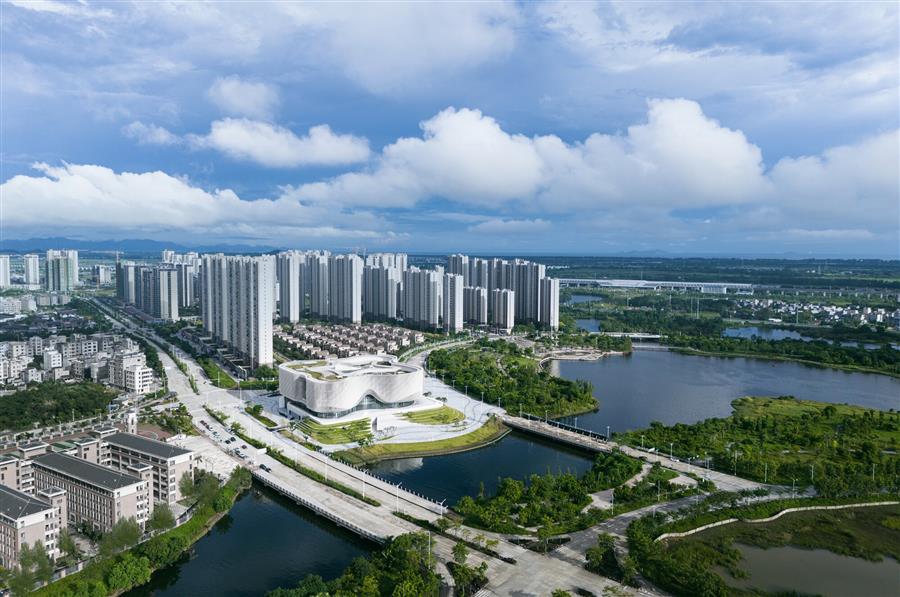

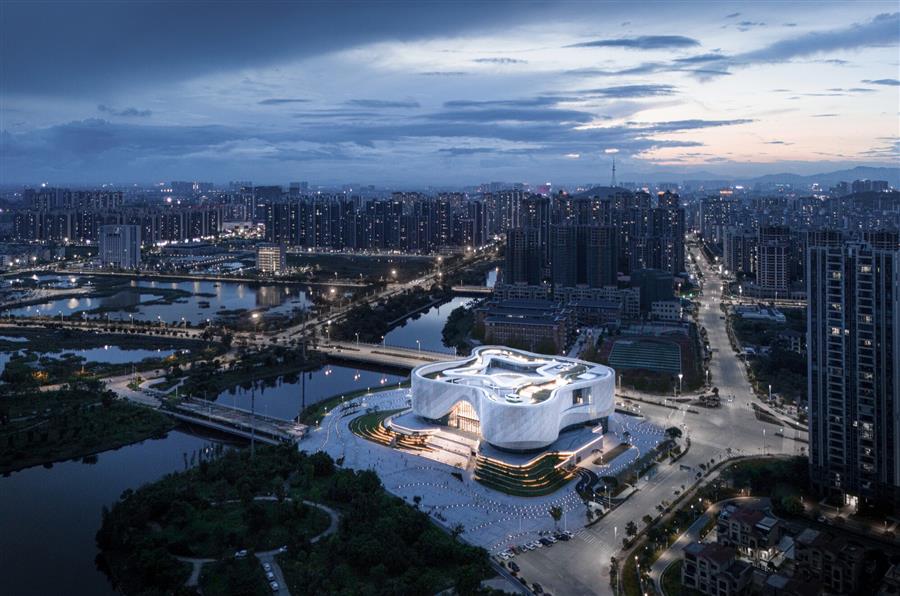

陽江市綜合文化中心位于陽江市漠陽湖公園北側，基地環境優美視線開闊。項目集合了陽江市檔案館、黨史館、方志館、名人館、博物館、規劃館及工人文化宮等多個機構與功能，它為周邊社區注入全新的活力，成為陽江市新城區的文化地標。

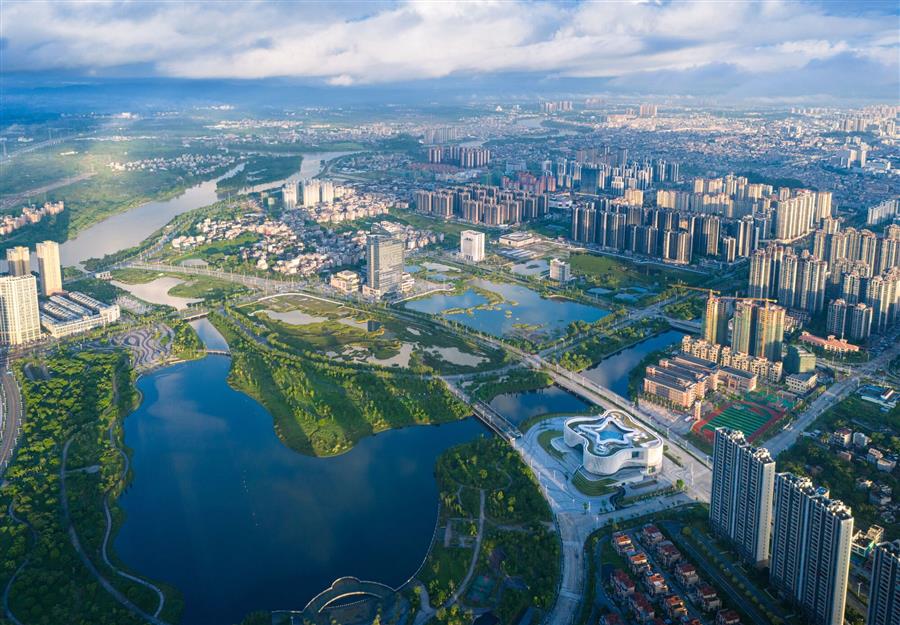

Located on the north side of Moyang Lake Park in Yangjiang City, the comprehensive cultural center enjoys a beautiful environment and wide view. The project integrates multiple institutions and functions such as the Archives Center, the Party History Museum, the Local Records Museum, Hall of Fame, museum, planning hall and the Workers' Cultural Palace. It injects vitality into the surrounding communities and has become a cultural landmark in the new urban area of Yangjiang City.
![]()
![]()

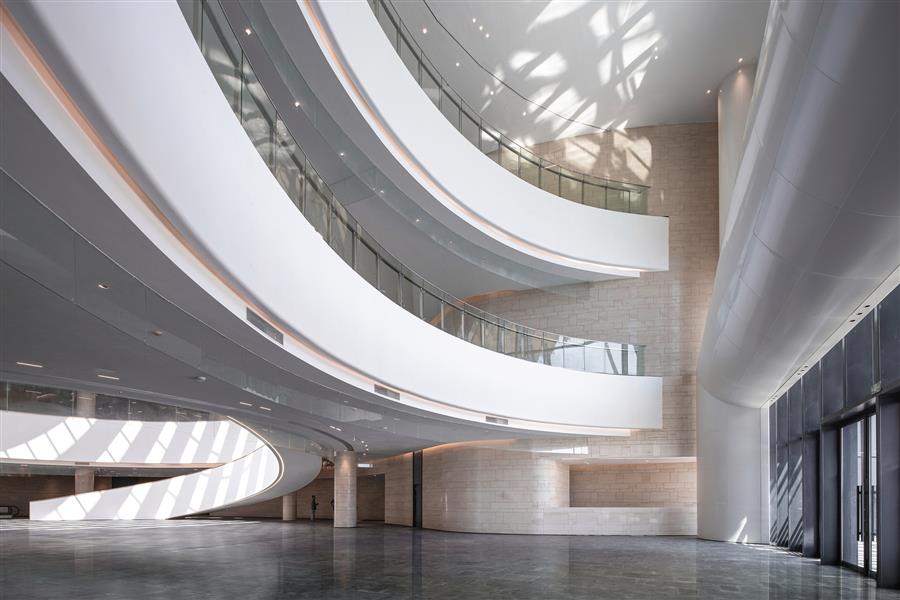

1.功能復合與共享集約新模式——陽江市綜合文化中心采用功能復合、共享集約的設計策略，通過將7個獨立運營機構集中在文化中心建筑內，環繞共享中庭布置，形成7館合1的復合型的文化綜合體布局，既為市民帶來了豐富的空間體驗，又通過集中的服務管理縮短流線、節約用地、表面積與空調能耗，減少公共配套資源浪費，創造了國內小城市文化綜合建筑集約建設的新模式。
1. A new model of sharing and functional integration - Yangjiang Cultural Center adopts a design strategy of functional integration and shared intensification. By concentrating 7 independent operating institutions around the shared atrium of building, it forms a cultural complex layout of seven halls in one. This can bring rich space experience to the public, and the centralized service management can also shorten the flowline, save land, surface area and air conditioning energy consumption, reduce the waste of public supporting resources, and create a new model of intensive construction of cultural comprehensive buildings for medium-sized cities in China.
![]()
![]()

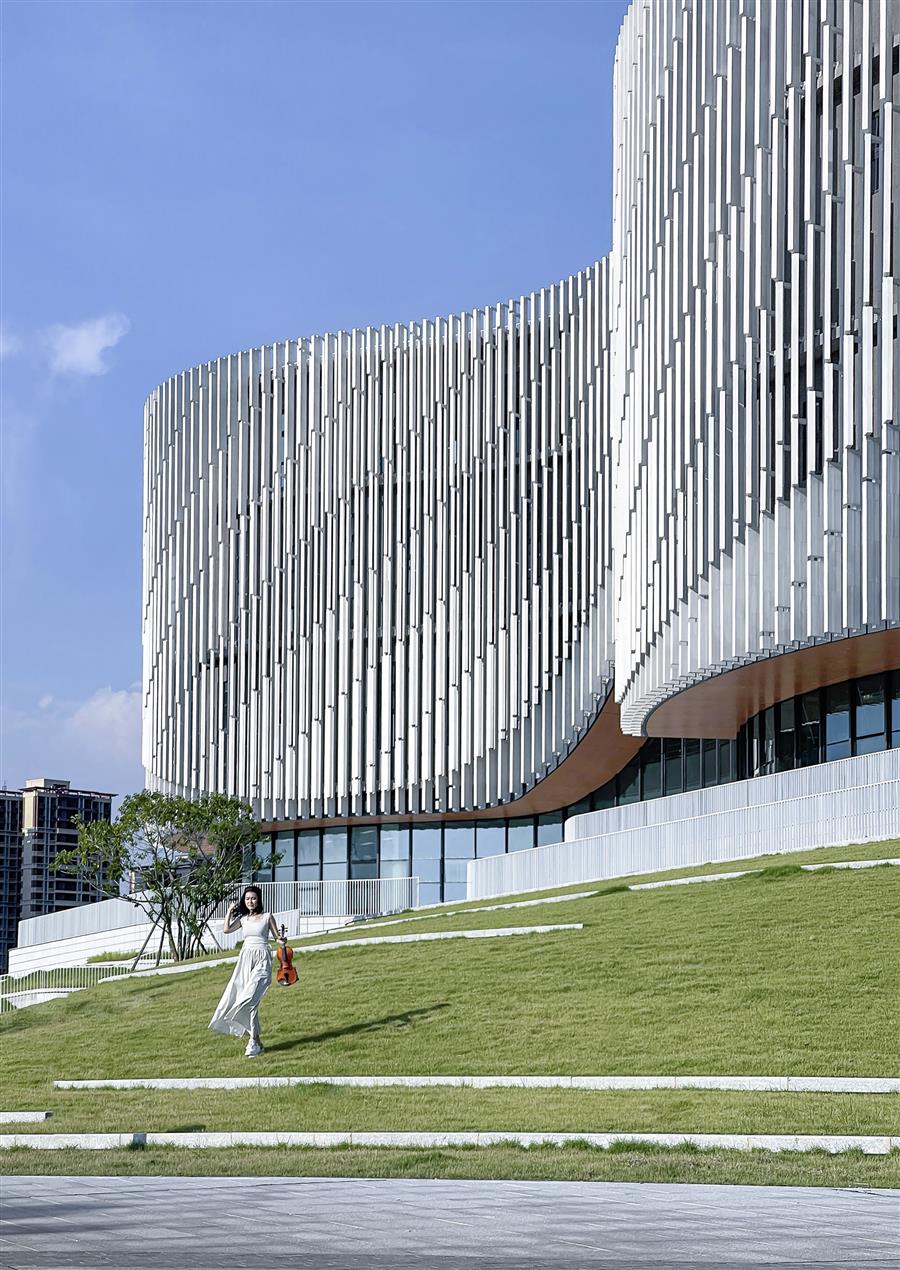

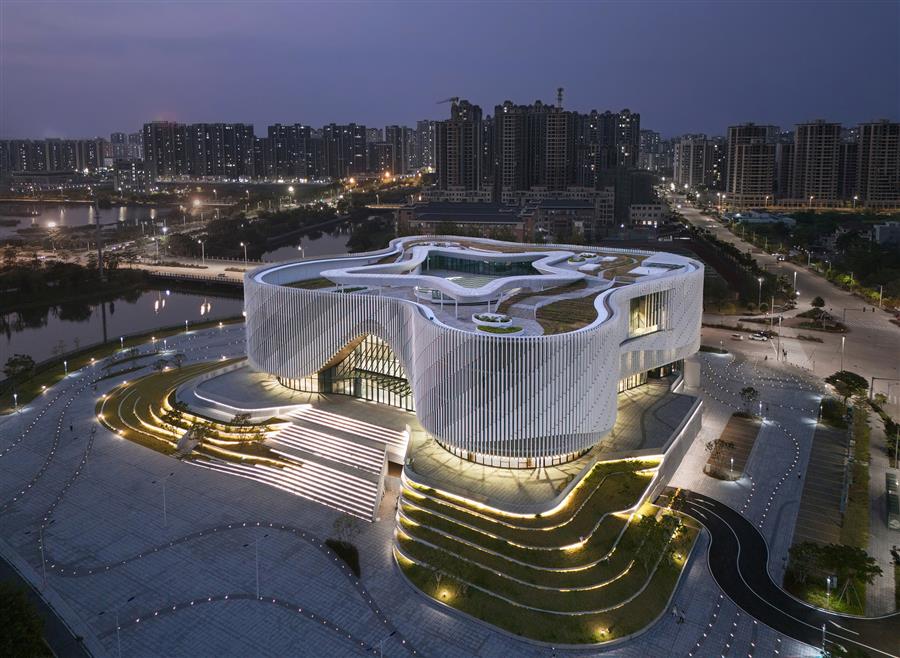

2.激發社區活力的開放平臺——我們希望文化中心不僅被設計為新區的地標，也能成為與周邊公園共享、為市民提供多重體驗活力場所。建筑基座通過綠化平臺的手法向漠陽湖公園延展打開，平臺上設置尺度宜人的平緩草坡，建筑基座部分融合如咖啡、書吧、工人文體活動等功能。市民可以隨意進入、停留、休息，結合平臺上的觀賞植物與條石座階的設計，市民不但可遠觀漠陽湖景和河流景色的全景視野，也可在平臺上實現各種社交活動，各得其所又不干擾。綠化平臺承載多樣活動，成為漠陽湖公園的一部分，將文化中心和公園的人與活動連為一體，使建筑從封閉的傳統文化公共建筑變成平時向社區開放的活動場所，激發新城區的社區活力。
2. An open platform to energize the community - Architects hope that the cultural center will not only be designed as a surrounding landmark, but regarded as a vibrant place shared with parks and providing citizens with multiple experiences. The podium extends to the Moyang Lake Park, on which a gentle grassy slope is set, and functions such as cafe, bookbar and recreational activities are integrated. Citizens can enter the space at will to stay or rest. The ornamental plants and stone steps on the platform allow people to enjoy the panoramic view of Moyang Lake and river and carry out various social activities on the platform without interfering. The green platform that becomes part of the park can carry a variety of activity types, connect the people and activities of the cultural center and the park, transform the building from a closed traditional cultural public building into an activity place open to the community at ordinary times, and stimulate the community vitality of the new urban area.
![]()
![]()
![]()

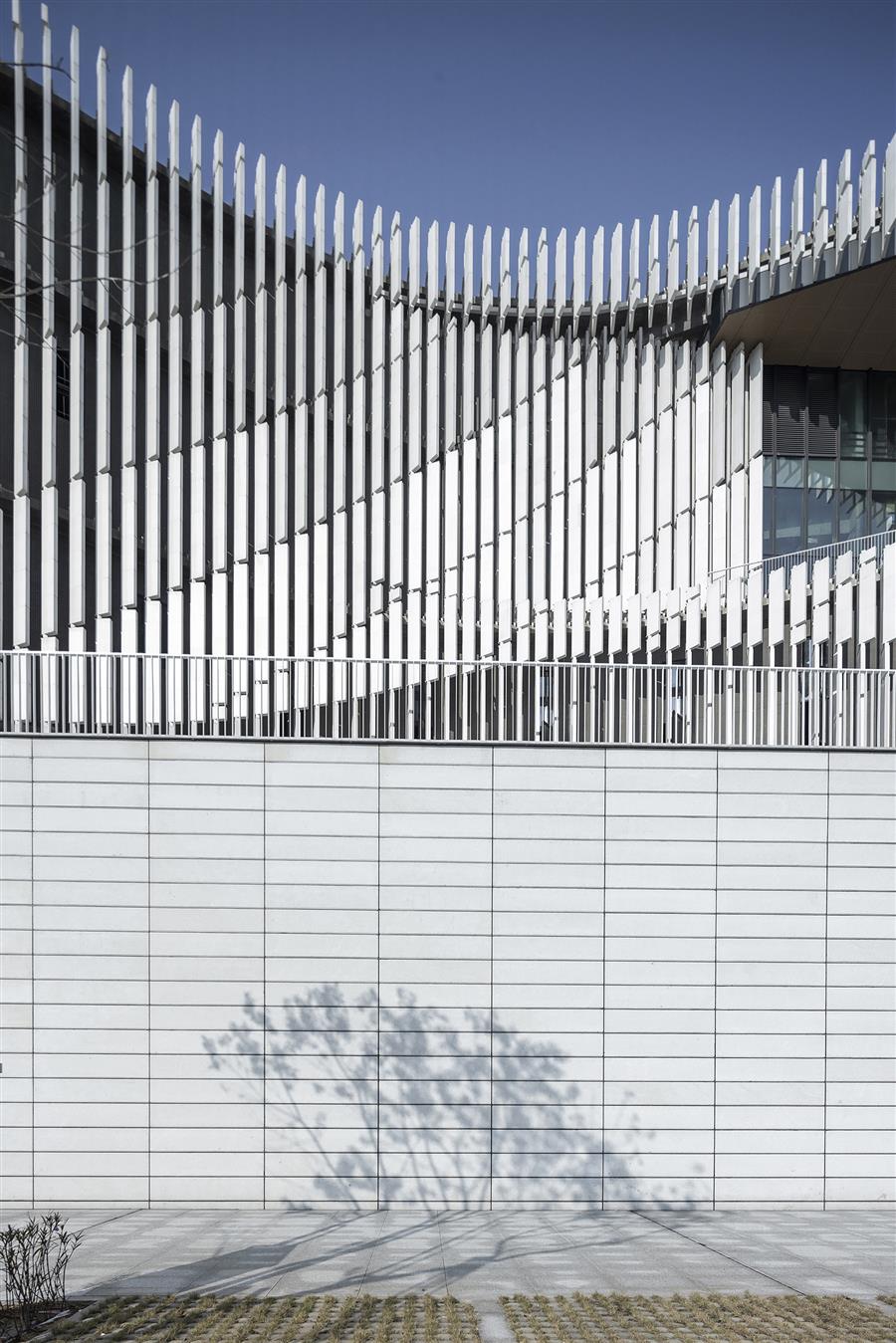

3.融合參數化設計的被動式建筑——方案結合亞熱帶濱海地區高太陽輻射、炎熱潮濕氣候的特征，采用多項被動式建筑設計措施降低建筑運營能耗，包括：立面的豎向遮陽陶棍是項目設計的重難點，主創團隊設計了具有獨創專利的大型復合陶棍遮陽系統，結合建筑各方向立面的陽光照射角度、輻射強度模擬計算，采用參數化的定位控制使陶棍在立面上形成不同角度、高度的變化，在各個方向?qū)崿F(xiàn)最佳的遮陽、隔熱和采光效果。
3. Passive building with parametric design - Taking into account the characteristics of the subtropical coastal region with high solar radiation and hot and humid climate, the scheme adopts a number of passive building design measures to reduce the energy consumption of the building operation, specifically involving the following aspects: The vertical sunshade pottery rod for the facade is a major and difficult point in the project design. The principal creation team design a large composite pottery rod sunshade system with an 900 patent. Combined with the simulation calculation of the sunlight exposure angle and radiation intensity of the facades in all directions of the building, the project adopts parametric positioning control to make the pottery rod form different angles and height changes on the facades, so as to achieve the best sunshade, heat insulation and lighting effects in all directions.
![]()
![]()
![]()

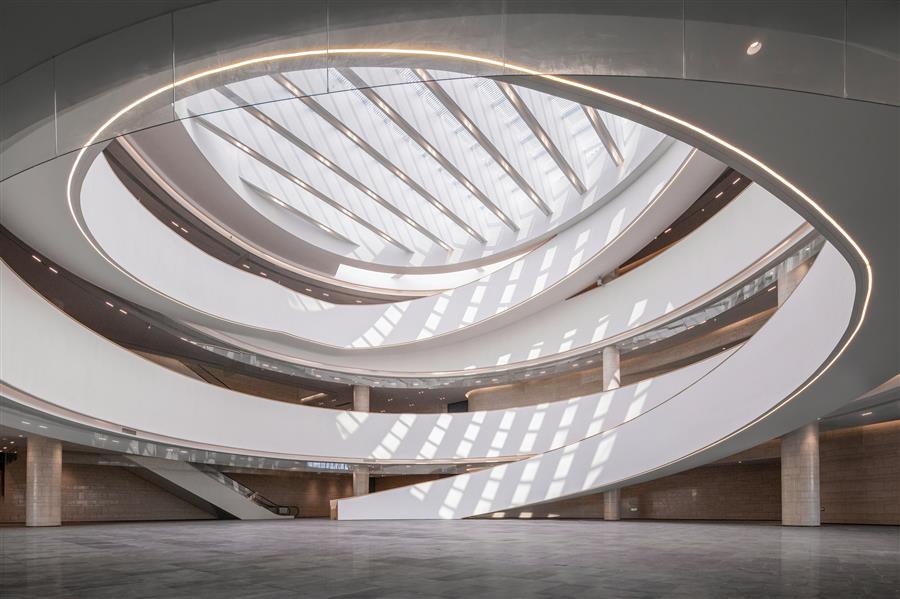

建筑采用有利于通風降溫的被動式布局，夏季南向海風經過湖面降溫，為建筑帶來清涼的空氣，降低文化館內外環境溫度；建筑設計有通風中庭、主導風向開口與立面開窗，春秋季過渡季節可采用自然通風，大幅降低運營能耗。基座覆土綠化即屋頂花園，除可作為生物滯留區域外，也設置雨水收集裝置可用于景觀植物灌溉，實現海綿城市的生態可持續性。
The building adopts a passive layout conducive to ventilation and cooling. In summer, the southward sea breeze can cool the lake surface, bring cool and refreshing air to the building and reduce the ambient temperature inside and outside the cultural center. The building is designed with ventilated atrium, leading wind openings and facade windows, in this way, natural ventilation can be used during the spring and autumn transition to significantly reduce operational energy consumption. The roof garden is created by covering the base with soil and then greening, which can act as a biological retention area, while the rainwater collection device can be used to irrigate the landscape plants, achieving ecological sustainability of a sponge city.
![]()
![]()

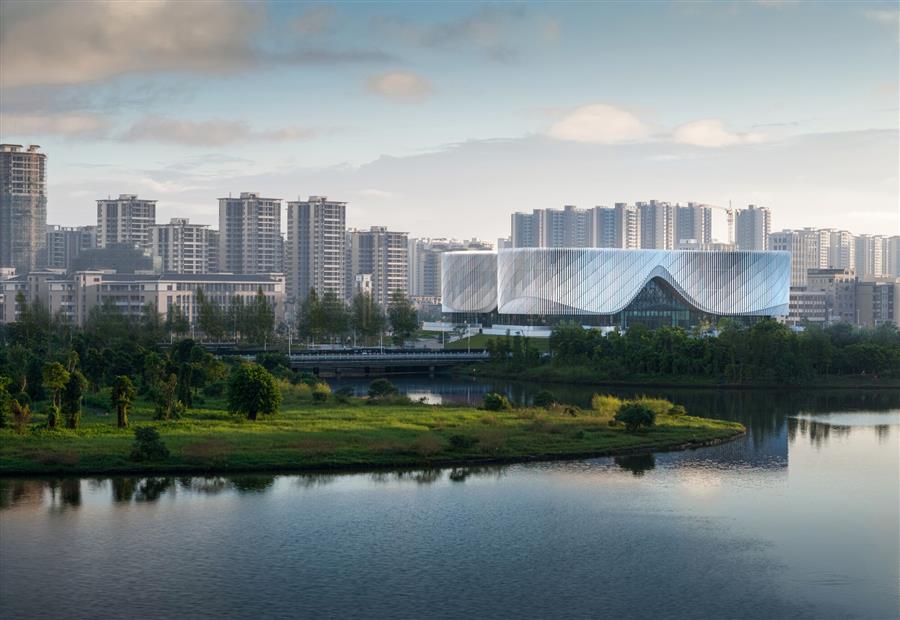

4.山海相融的地域文化特色——山相融的環境是陽江市最顯著的地理特征，文化中心建筑造型從陽江的山海城市特征與文化中汲取靈感，建筑設計了上部體量海洋意象的白色建筑主體和下部抽象山川元素的綠色平臺，以及象征自然的流動曲線造型，形成了文化中心獨特的山海地域特色。4. The regional cultural characteristics of mountain and sea integration - The integration of mountain and sea is the most significant geographical feature of Yangjiang City, and the architectural form of the cultural center draws inspiration from the characteristics and culture of Yangjiang's mountains and sea. The architectural design arranges the white building body symbolizing the image of the sea as the upper volume and the green platform of abstract mountain and river elements as the lower volume. Together with the flow curve modeling symbolizing nature, they form the unique mountain and sea regional features of the cultural center.
![]()
![]()

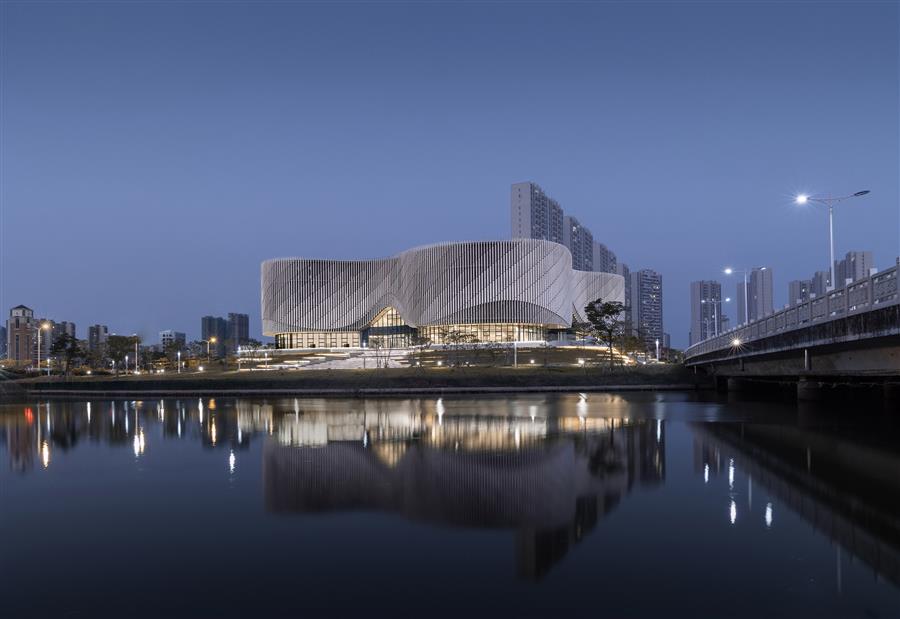

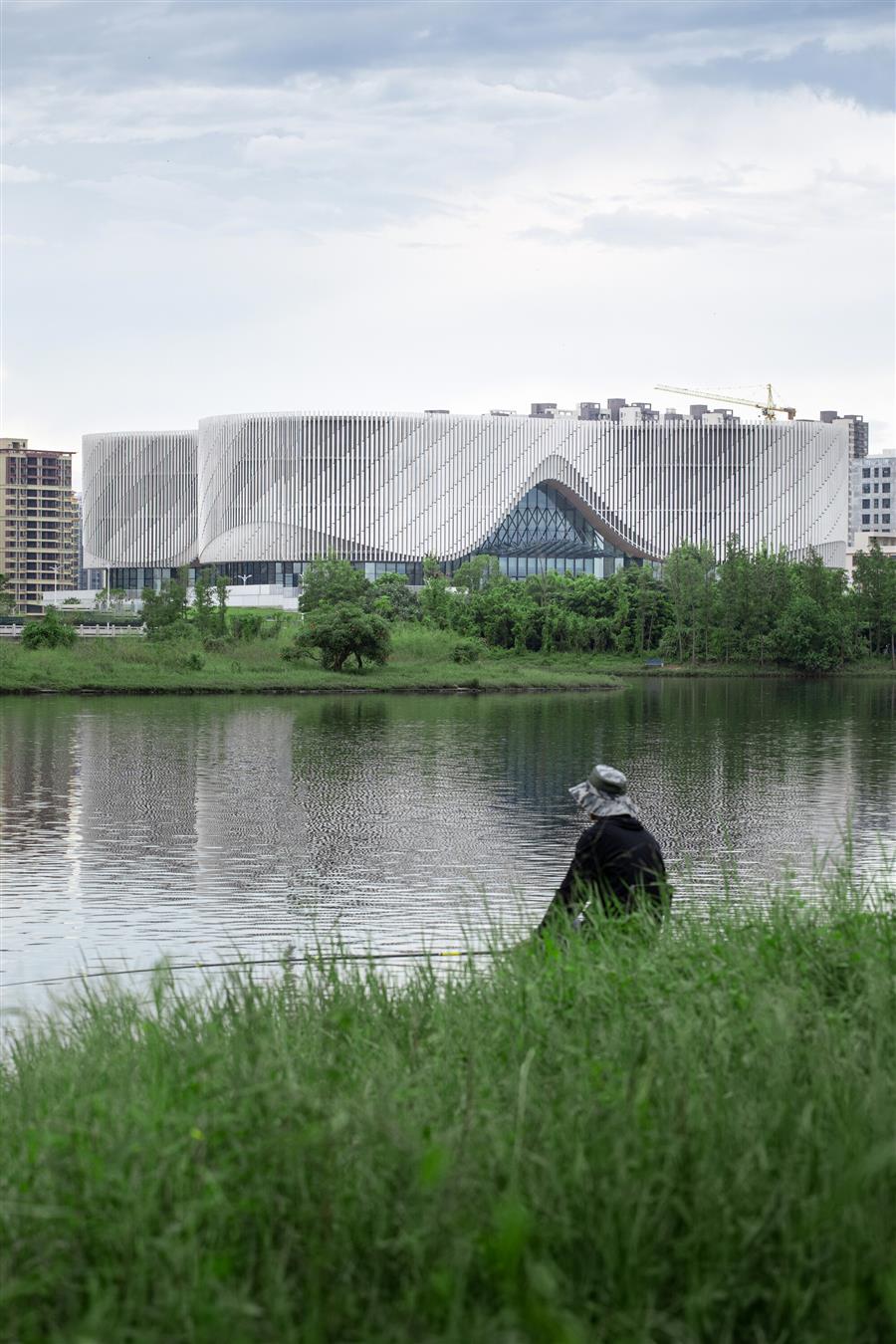

文化中心微妙的平面外形與立面輪廓控制，令使用者環繞建筑時隨著視角的變換，可體驗到不同朝向各不相同的形體與高低起伏的輪廓變化。而參數化的立面陶棍肌理，在陽光的照射下帶來豐富而充滿動感的光影變化，遠觀彷如微風吹動的風帆與波浪，展現這陽江濱海城市的地域特色與文化自信。

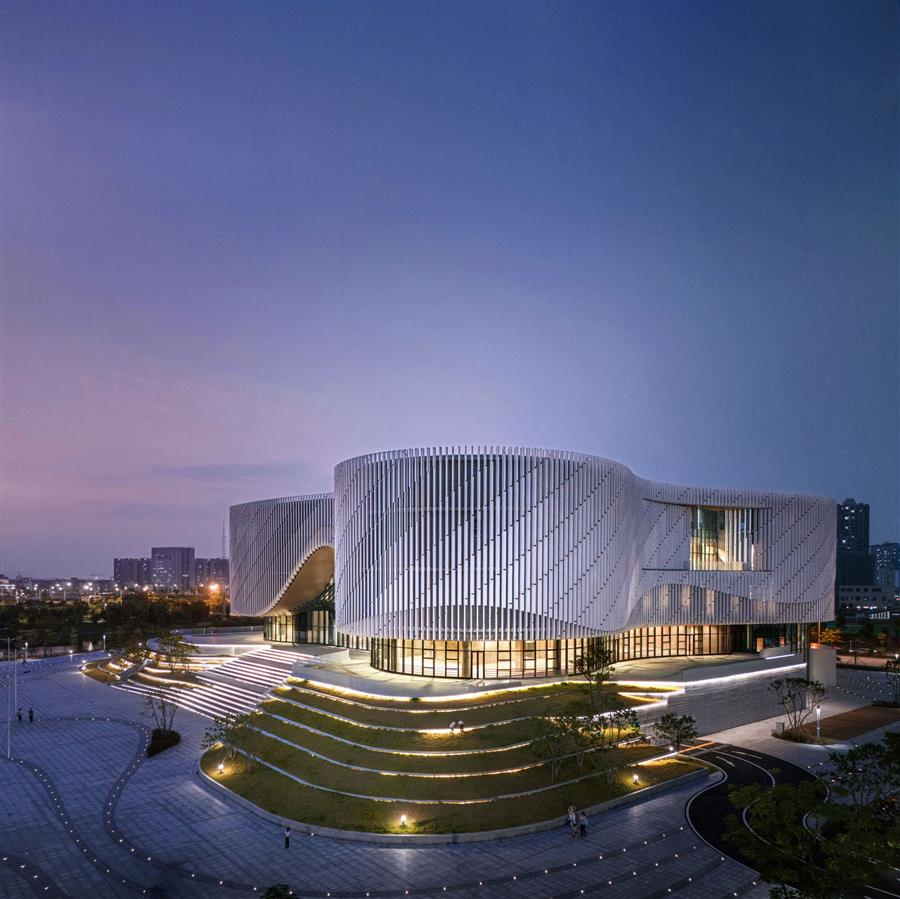

The subtle planar shape and contour control of the facade of the cultural center allow users to experience different shapes with different orientations and undulating contours as they walk around the building. The parameterized facade pottery rod texture can bring rich and dynamic light and shadow changes under the sunlight, which looks like sails and waves blowing in the breeze from a distance, demonstrating the regional characteristics and cultural self-confidence of Yangjiang as a coastal city.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
項目圖紙
![]()

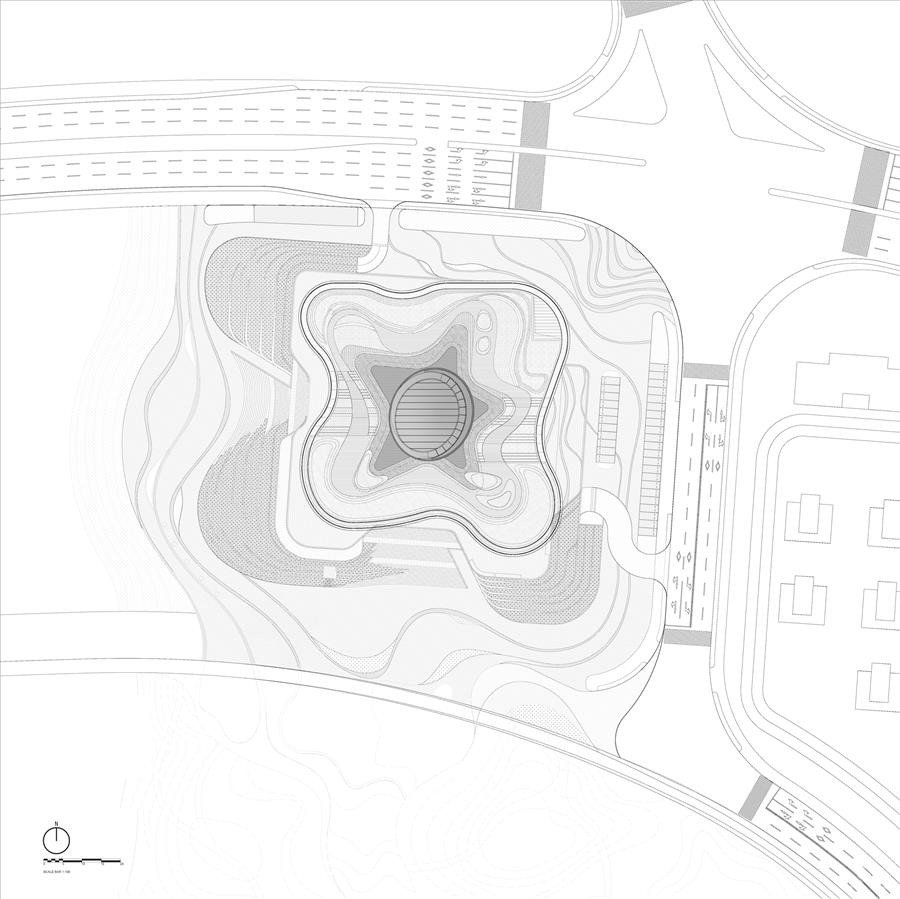

▲總圖
![]()
▲平面圖
![]()
▲立面圖
![]()
▲剖面圖
![]()

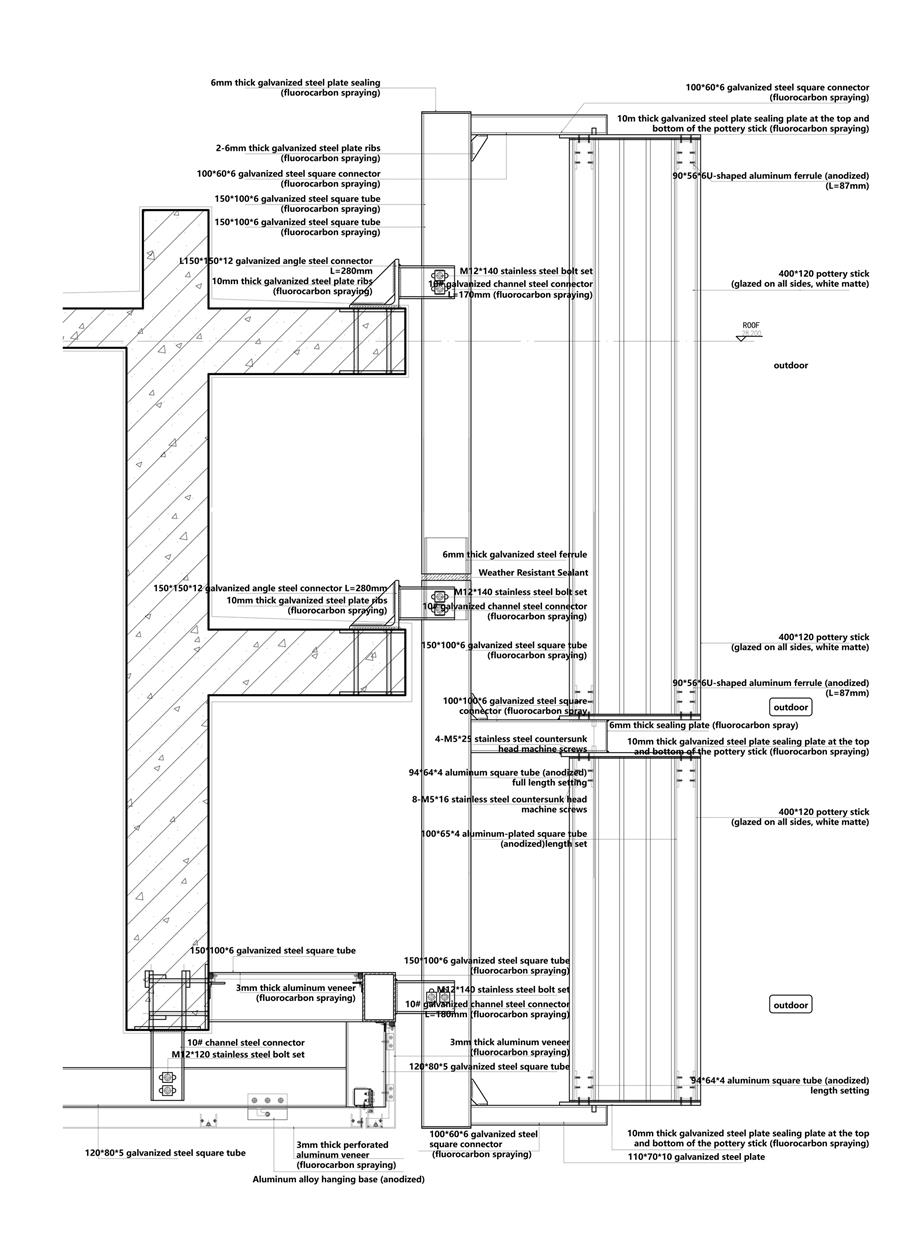

▲幕墻節點圖
![]()

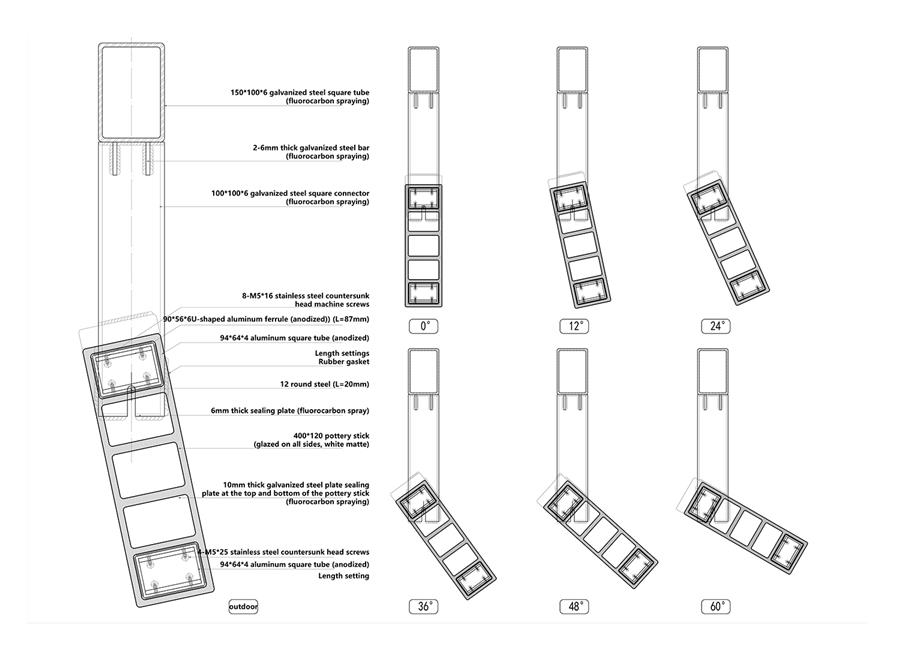

▲幕墻節點圖
![]()
▲剖透視
![]()
▲構成分析
![]()
▲生態分析
