設計單位
HPP Architects
地址
德國
建筑面積
11400 m2
項目年份
2023
攝影
Ralph Richter
![]()
![]()
拋棄舊的傳統，采用新的建筑路徑，思考循環，設計解決方案，為人們，社區和環境增加價值，這是搖籃整體規劃團隊從一開始的目標。辦公樓自信地坐落在塞爾多夫媒體港的異質城市發展星座中，并發展出一種獨立的建筑語言。這種語言源于設計的三個主要支柱的協同作用-整體立面，木材混合結構和搖籃到搖籃概念的實現。

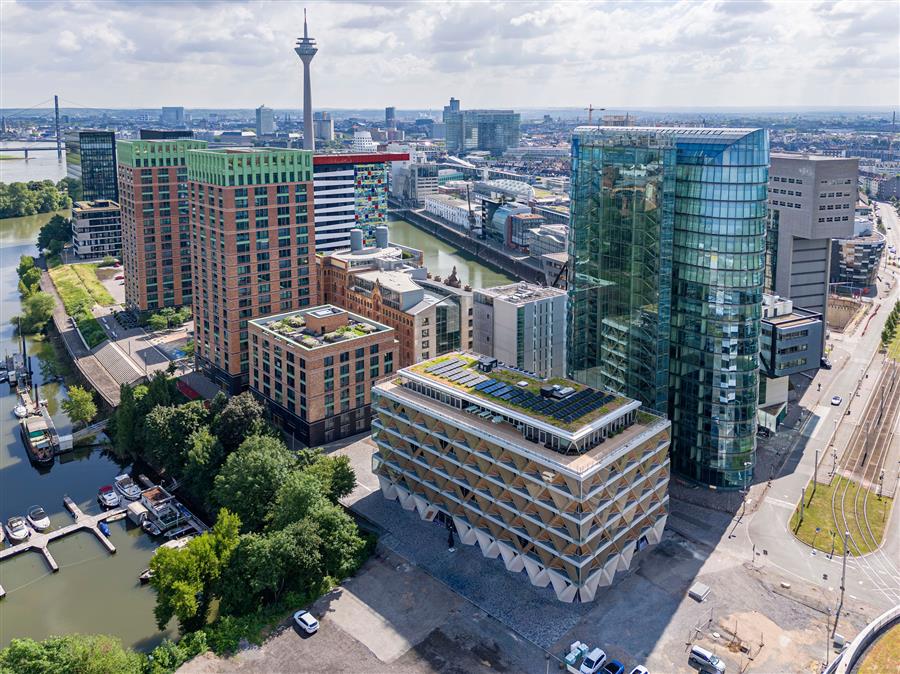

To leave old conventions behind, take new architectural paths, think circular, and design solutions as added value for people, neighborhood, and environment, was the goal of The Cradle's integral planning team right from the start. The office building sits confidently in the heterogeneous urban development constellation of the Düsseldorf Media Harbor and develops an independent architectural language. This language derives from the synergy of the three main pillars of the design - the integral facade, the timber hybrid construction, and the realization of the Cradle to Cradle concept.
![]()
![]()
除了地下室、地面層和核心外，所有重要的建筑構件都是由木材制成的。獨特的菱形立面是根據場地的不同深度而設計的，并實現了多種功能：它作為外部承重結構，提供支撐和遮陽，形成邏輯，并形成周?chē)h(huán)境的視野。v形柱的不同深度和方向創造了令人興奮的開放和封閉的相互作用，并與充當棱鏡的玻璃擋板相結合，根據一天中的觀點和時間產生高度的可變性。

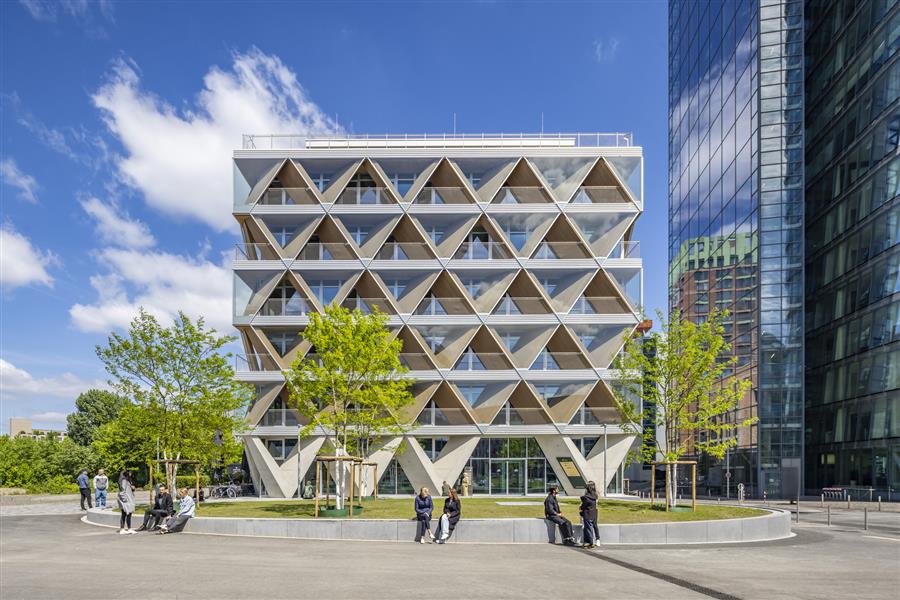

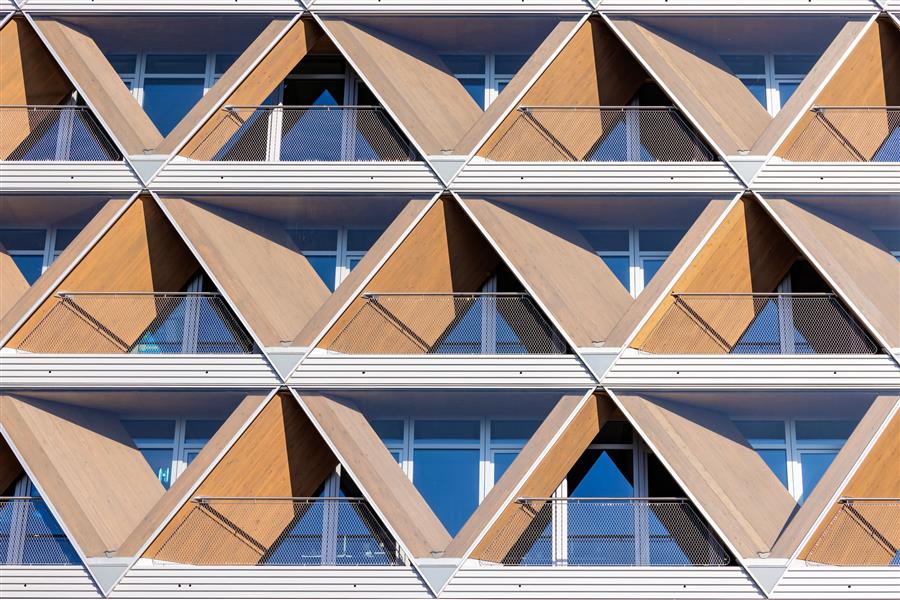

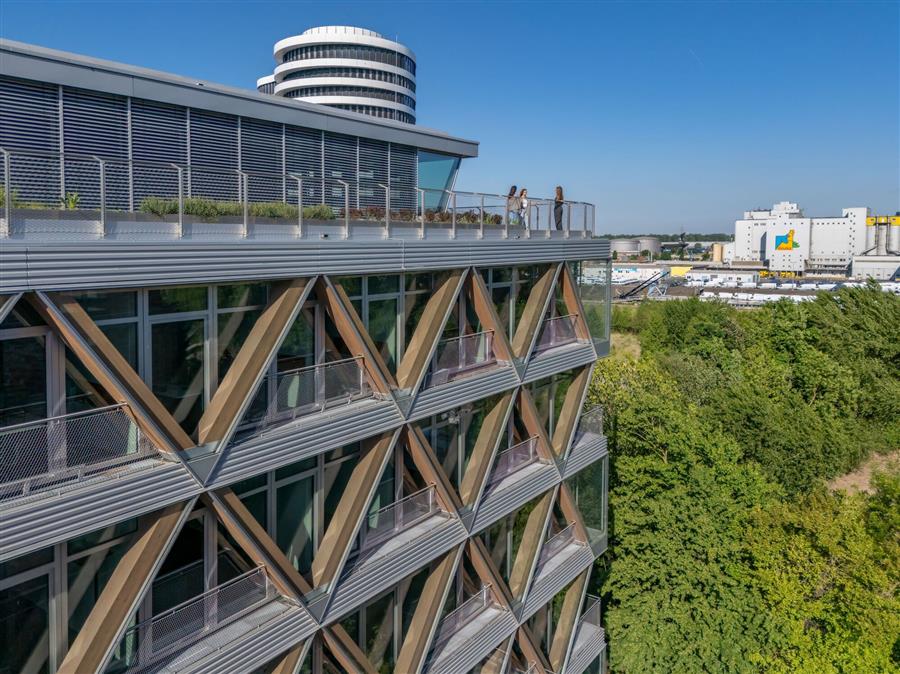

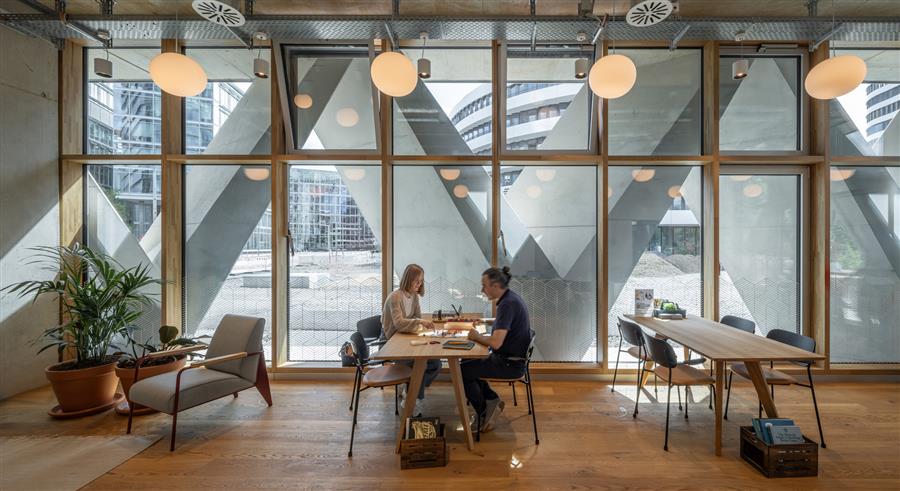

Except for the basement levels, ground floor, and core, all essential building components are made of wood. The distinctive diamond-shaped facade was developed in response to the site, varying depth, and fulfills multiple functions: it serves as an external load-bearing structure, provides bracing and solar protection, forms loggias, and frames views of the surroundings. The different depths and orientations of the V-columns create an exciting interplay of open and closed, and in combination with the glass baffle plates that act as prisms, a high degree of changeability depending on the viewpoint and time of day.
![]()
![]()
![]()
![]()
搖籃充當原材料倉庫。與數字孿生體相連的Circularity Passport?提供了可拆解性、材料純度、材料健康和可回收性等參數信息，所有材料和產品都是根據這些參數選擇的。與傳統建筑相比，搖籃的材料健康度提高了56%，碳足跡減少了50%。超過90%的材料是可回收的。Cradle是第一個在Madaster平臺上注冊的德國新建項目。
The Cradle acts as a raw material depot. A Circularity Passport? linked to the digital twin provides information on parameters such as dismantlability, material purity, material health, and recyclability, according to which all materials and products were selected. Compared to conventional buildings, the cradle's material health was improved by 56% and its carbon footprint by 50%. Over 90% of the materials are recyclable. The Cradle was the first German new build project to be registered on the Madaster platform.
![]()
![]()
![]()
材料數據被記錄下來，建筑可以通過與原材料交換的鏈接貨幣化，并顯示其組件的剩余價值，作為有價值的原材料倉庫。根據拆卸的設計原則，采用插入式和螺釘連接的結構，有意識地決定不使用包層，木材建筑公司的木材回收義務，以及租賃合同中關于使用經過認證的家具和室內配件的綠色租賃條款，確保了圓形概念的一致實施。
The material data was recorded, and the building can be monetised via a link to the raw materials exchange and shown with the residual value of its components as a valuable raw materials depot. The construction with plug-in and screw connections according to the principle of design for disassembly, the conscious decision not to use cladding, the wood take-back obligation of the timber construction company, and the green lease clauses in the rental contracts on the use of cradle-to-cradle-certified furniture and interior fittings ensure the consistent implementation of the circular concept.
![]()
![]()
![]()
![]()
![]()
![]()
整體增值方法遠遠超出了材料循環。光伏系統、帶有巢箱的保留/綠色屋頂和昆蟲旅館、移動樞紐（電子共享服務）、公共底層用途，以及室內的綠色和粘土墻，補充了可持續發展的概念，為人們、環境和社區創造了附加價值。

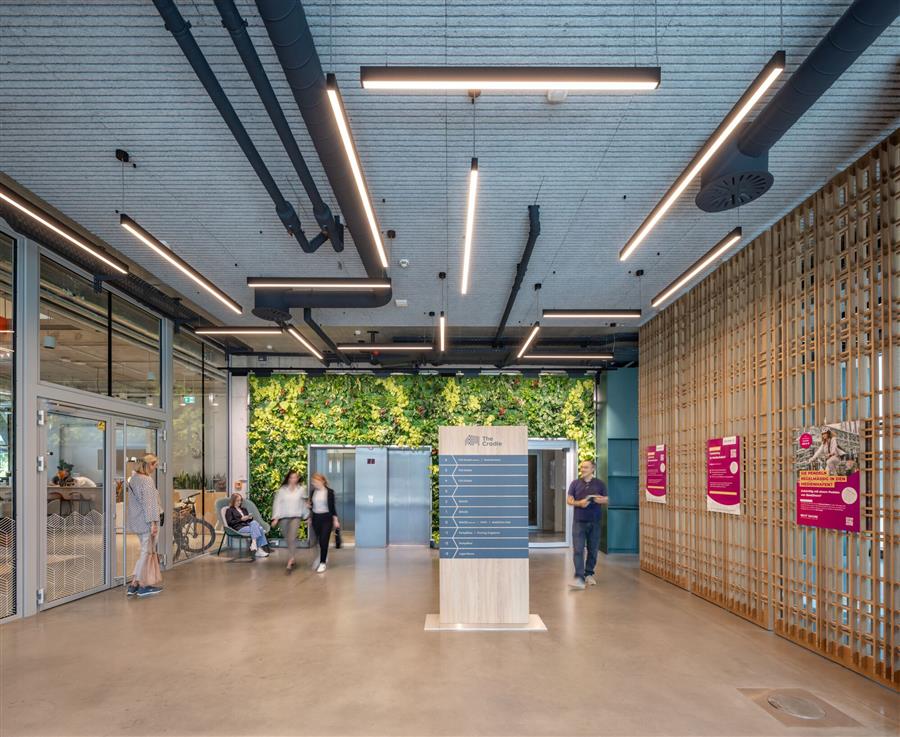

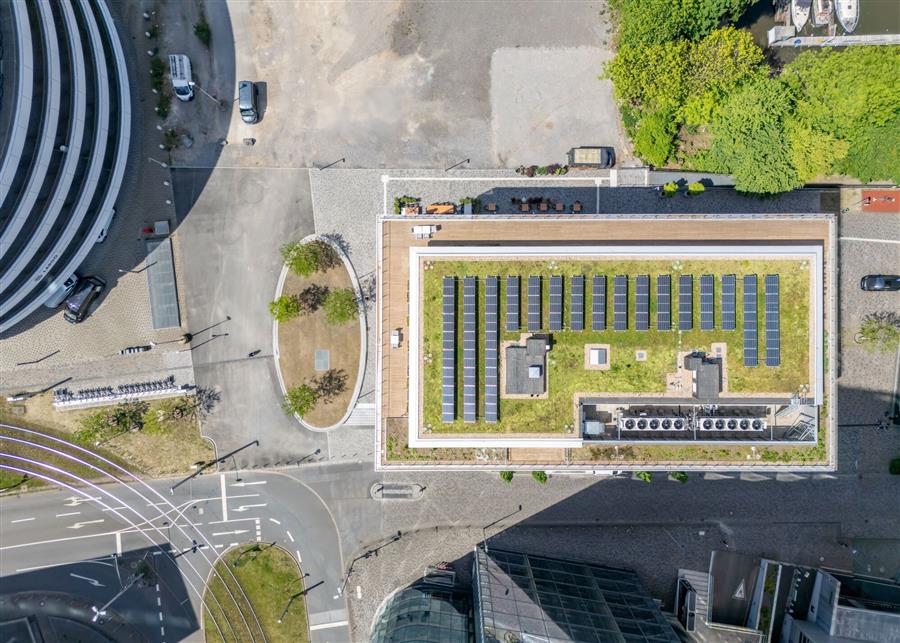

The holistic value-added approach goes far beyond material cycles. Photovoltaic systems, a retention/green roof with nesting boxes and an insect hotel, a mobility hub (e-sharing services), public ground-floor uses, as well as green and clay walls in the interior, complement the sustainable concept and create added value for people, the environment, and the neighborhood.
![]()
項目圖紙
![]()
![]()
![]()

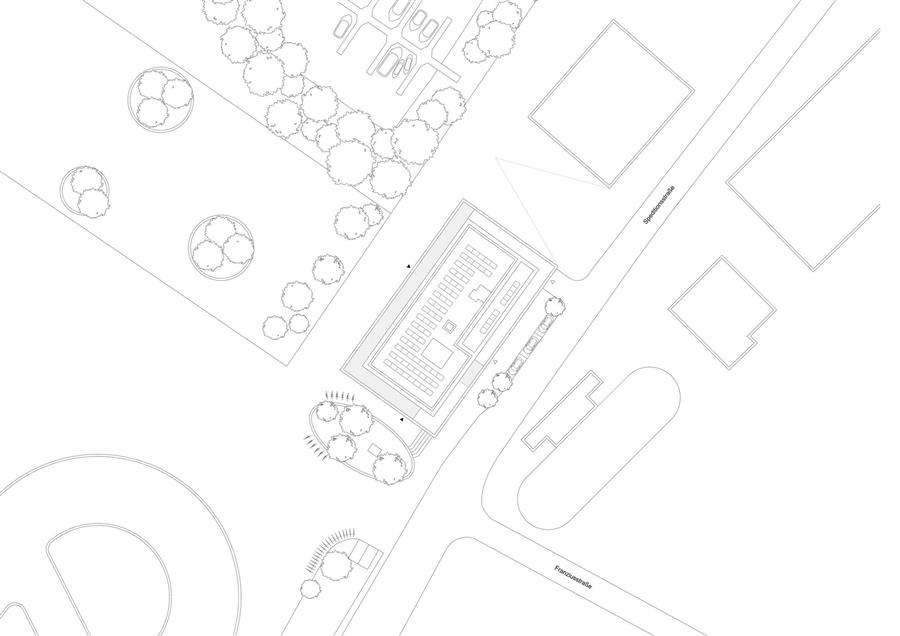

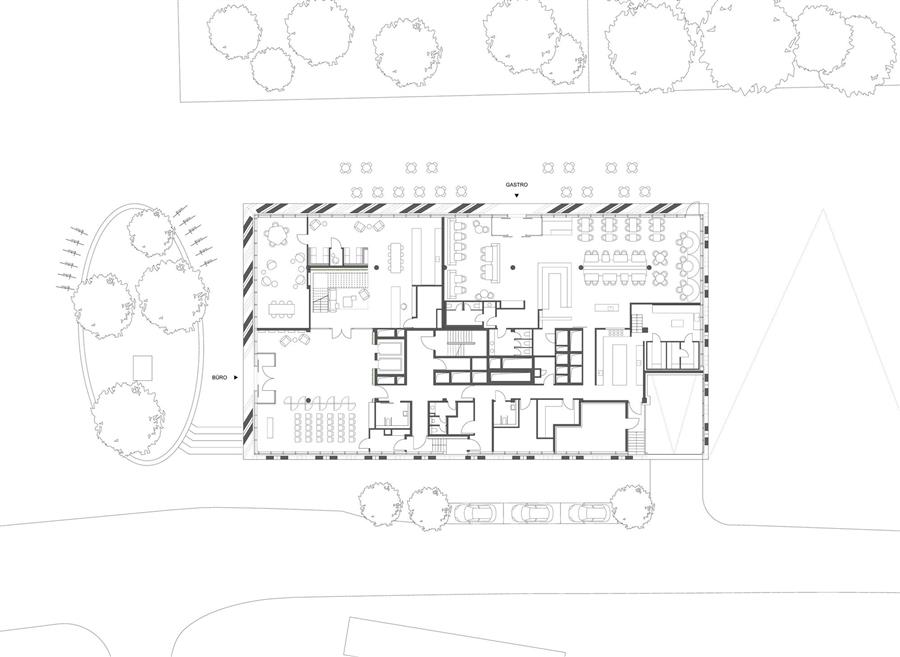

▲平面圖
